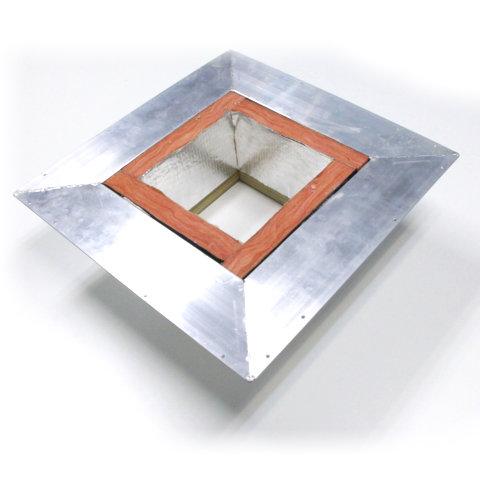

Aluminum Insulated 8” Curb for the DryerJack (flat roof install)

This aluminum curb is custom made for DryerJack Model DJK486U. It is recommended that the curb installation be completed by a licensed roofing contractor and flashed in accordance with the roofing membrane manufacturer’s installation guidelines.

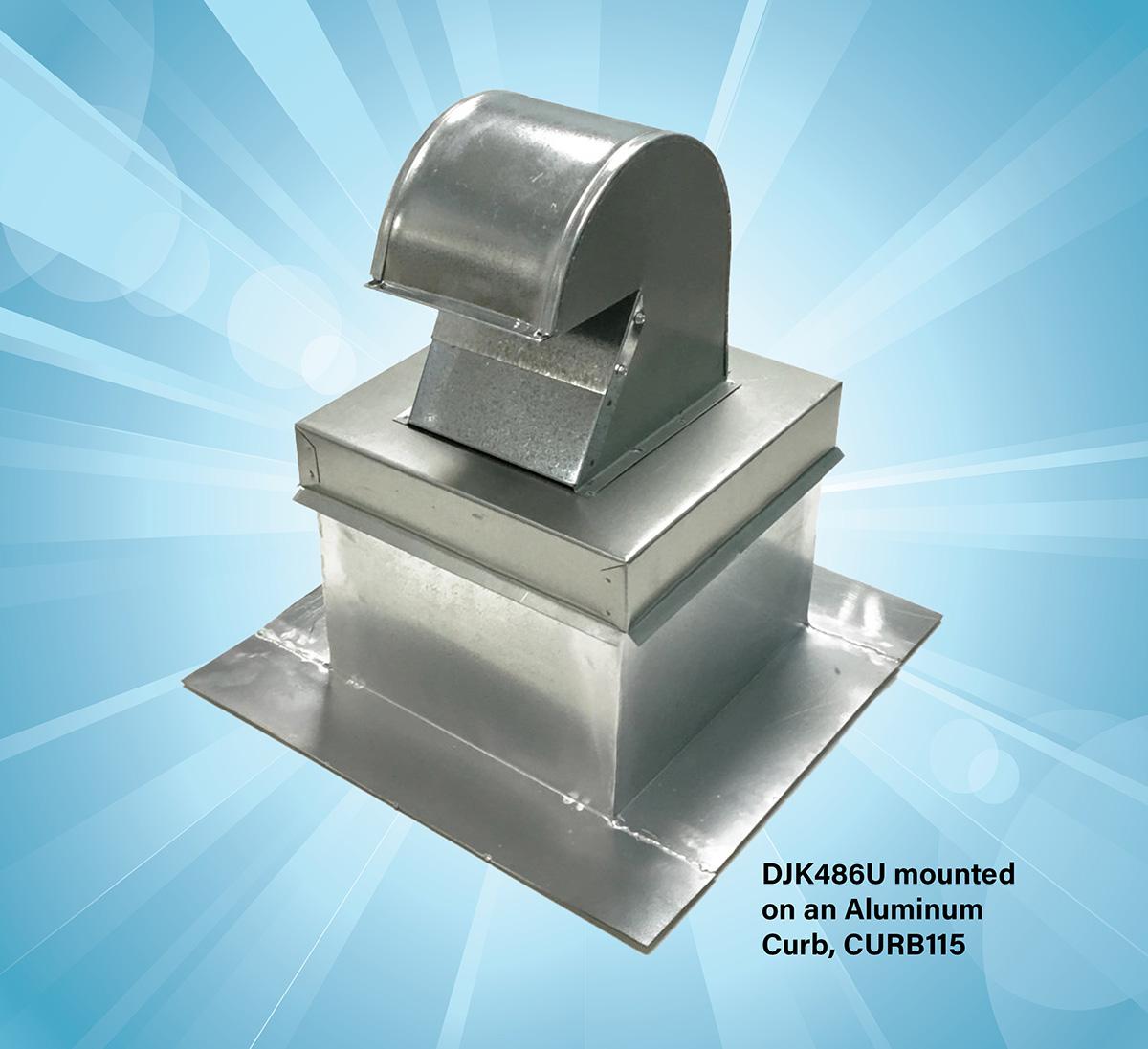

Running the roof material up the side of the curb is common. The DryerJack is then secured to the curb with two or four corrosive tolerant screws (not provided).

Details:

• Overall Height: 7”
• Inside Opening: 8 3/4" X 8 3/4"
• Outside Curb Dimension: 11 1/2" X 11 1/2"
• Outside Flange Dim.: 19 1/2" X 19 1/2"
• 3/16” Fastening holes in the flange
• Gauge of Aluminum - .063
• R-value of insulation - 6.5
• Pressure treated rim
• Flange width - 4"
• Carton dim - 20" x 20" x 10"
• Weight - approx. 10 lbs
